P4 Series

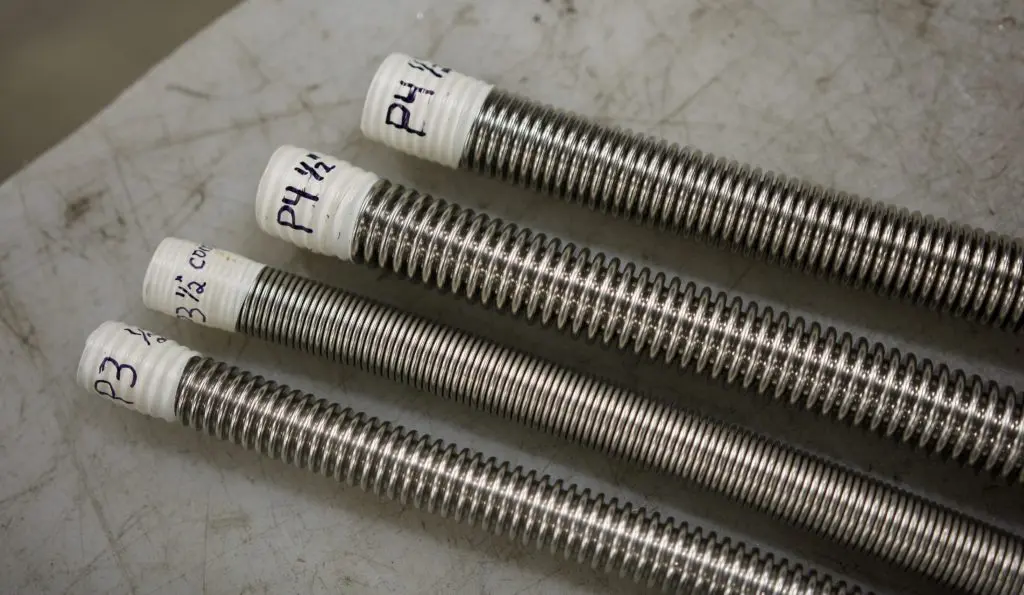

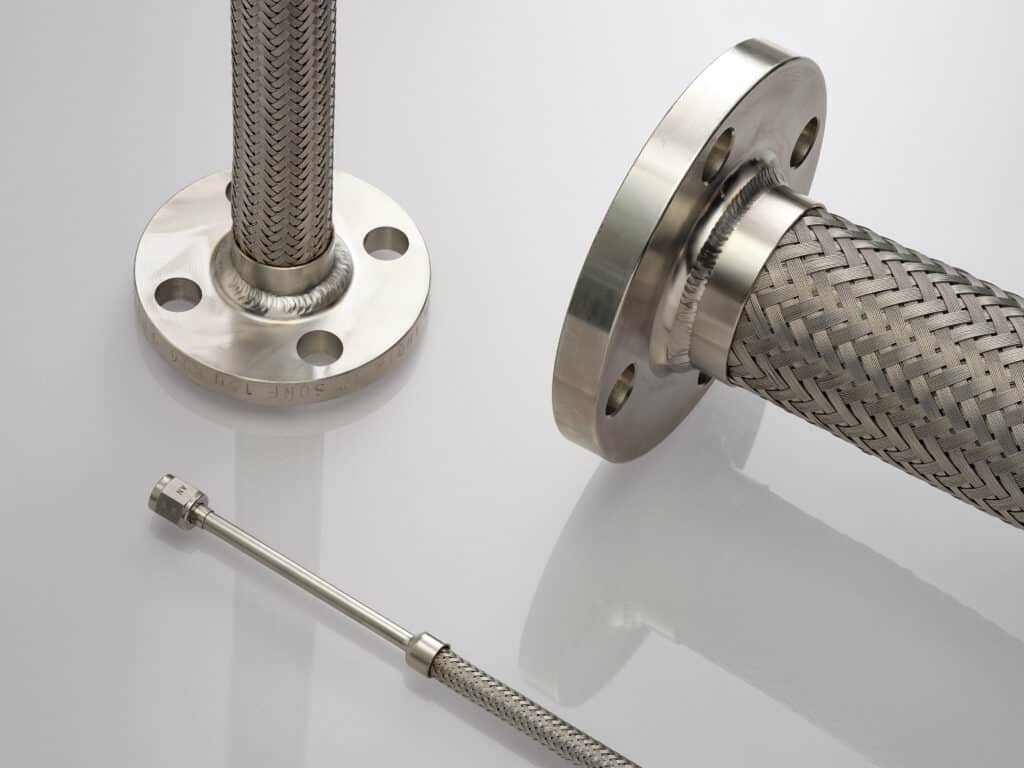

P4 hose and braid represent a new generation of products manufactured using an innovative production process which allows for longer lengths, uniformity of corrugations and consistency of pitch.

The series promises a bright, clean finish with a high coverage braid that sustains high working pressures and provides maximum protection. Penflex carefully packages long continuous lengths of P4 braided and bare hose on durable reels for shipment by air, truck or ocean. We package loose braid products with the same care into durable carton boxes.

Benefits

Midweight construction
Good corrosion resistance
High pressure ratings
Available in compressed pitch
Made in accordance with ISO 10380
AIS compliant options available

Technical Specifications

Construction: Annular hose with a standard pitch
Hose material: 316L and 321 stainless steel
Braid material: 304L and 316L
Other alloys available upon request
Hose sizes: 1/4″ through 4″


Nom.I.D. (in.)	Part Number	Braid Layers	Braid Construction	Braid Coverage (%)	Nom. O.D. (in.)	Maximum Pressure @ 70ºF (PSIG)		Bend Radius (in.)		Weight per Foot (Lb.)
Nom.I.D. (in.)	Part Number	Braid Layers	Braid Construction	Braid Coverage (%)	Nom. O.D. (in.)	Working	Nominal Burst	Dynamic	Static	Weight per Foot (Lb.)
1/4”	40xx-004	0			0.4	200	----	5	1	0.08
	1/4”	P4-H40xx-B40xx-004	1	24 x 5 x .014	98	0.48	2,500			10,000	5	1	0.17
	1/4”	P4-H40xx-2B40xx-004	2	24 x 5 x .014	98					0.56	3,375	13,500			0.26
5/16”	40xx-005	0			0.48	180	----	5	1	0.09
	5/16”	P4-H40xx-B40xx-005	1	24 x 6 x .014	98	0.57	2,300			9,200	5	1	0.19
	5/16”	P4-H40xx-2B40xx-005	2	24 x 6 x .014	98					0.64	3,680	14,720			0.29
3/8”	40xx-006	0			0.63	100	----	5.5	1.25	0.13
	3/8”	P4-H40xx-B40xx-006	1	24 x 8 x .014	98	0.7	1,680			6,720	5.5	1.25	0.27
	3/8”	P4-H40xx-2B40xx-006	2	24 x 8 x .014	98					0.81	2,700	10,742	5.5	1.25	0.41
1/2”	40xx-008	0			0.84	80	----	6	1.5	0.23
	1/2”	P4-H40xx-B40xx-008	1	24 x 9 x .014	94	0.91	1,240			4,960	6		0.39
	1/2”	P4-H40xx-2B40xx-008	2	24 x 9 x .014	94					0.98	1,980	7,920			0.55
3/4”	40xx-012	0			1.21	70	----	8	2.25	0.39
	3/4”	P4-H40xx-B40xx-012	1	36 x 9 x .014	95	1.28	940			3,760	8	2.25	0.62
	3/4”	P4-H40xx-2B40xx-012	2	36 x 9 x .014	95					1.35	1,500	6,000	8	2.25	0.85
1”	40xx-016	0			1.51	40	----	9	2.75	0.53
	1”	P4-H40xx-B40xx-016	1	36 x 10 x .014	92	1.58	630			2,520	9	2.75	0.79
	1”	P4-H40xx-2B40xx-016	2	36 x 10 x .014	92					1.65	1,000	4,000	9	2.75	1.05
1-1/4”	40xx-020	0			1.85	25	----	10.5	3.5	0.76
	1-1/4”	P4-H40xx-B40xx-020	1	48 x 8 x .016	92	1.93	575			2,300	10.5	3.5	1.12
	1-1/4”	P4-H40xx-2B40xx-020	2	48 x 8 x .016	92					2.02	920	3,680	10.5	3.5	1.48
1-1/2”	40xx-024	0			2.19	20	----	12	4	0.84
	1-1/2”	P4-H40xx-B40xx-024	1	48 x 10 x .016	93	2.28	500			2,000	12	4	1.29
	1-1/2”	P4-H40xx-2B40xx-024	2	48 x 10 x .016	93					2.37	800	3,200	12	4	1.74
2”	40xx-032	0			2.61	15	----	15	5	0.9
	2”	P4-H40xx-B40xx-032	1	48 x 10 x .020	95	2.73	532			2,128	15	5	1.61
	2”	P4-H40xx-2B40xx-032	2	48 x 10 x .020	95					2.85	850	3,400	15	5	2.33
2-1/2”	40xx-040	0			3.23	12	----	20	8	1.16
	2-1/2”	P4-H40xx-B40xx-040	1	72 x 8 x .020	94	3.33	500			2,000	20	8	1.86
	2-1/2”	P4-H40xx-2B40xx-040	2	72 x 8 x .020	94					3.43	700	2,800	20	8	2.56
3”	40xx-048	0			3.78	10	----	22	9	1.21
	3”	P4-H40xx-B40xx-048	1	72 x 9 x .020	93	3.88	400			1,600	22	9	2.00
	3”	P4-H40xx-2B40xx-048	2	72 x 9 x .020	93					3.98	600	2,400	22	9	2.80
4”	40xx-064	0			4.85	8	----	27	13	1.69
	4”	P4-H40xx-B40xx-064	1	72 x 11 x .020	91	4.98	300			1,200	27	13	2.68
	4”	P4-H40xx-2B40xx-064	2	72 x 11 x .020	91					5.08	444	1,776	27	13	3.68

Download P4 Spec Sheet (US)

Download P4 Spec Sheet (Metric)

P4 Compressed (US)

P4 Compressed (Metric)

American Iron & Steel (AIS) Compliant Options

For projects with 100% domestic sourcing requirements, Penflex offers AIS compliant versions of P4 and 700 Series hose and braid. While AIS requirements apply specifically to water infrastructure projects, products manufactured to AIS standards may also support broader domestic sourcing initiatives, including Build America, Buy America (BABA) and Defense Federal Acquisition Regulation Supplement (DFARS).

AIS requirements mandate that:

Stainless steel strip used to form hose is melted and produced in the United States
Stainless steel wire used for braid is melted and drawn in the United States
All manufacturing processes take place domestically
